2. Mellanox#
Before using any Mellanox Infiniband or Ethernet device, it is HIGLY recommanded to upgrade the firmwares (both NIC/HCA and switches).
2.1. Get HCA informations#
To get a simple list of current HCA parameters, use:
sudo mlxlink -d mlx5_0 -p 1
Output will be like the following:
Operational Info
----------------
State : Active
Physical state : LinkUp
Speed : IB-SDR
Width : 4x
FEC : No FEC
Loopback Mode : No Loopback
Auto Negotiation : ON
Supported Info
--------------
Enabled Link Speed : 0x00000001 (SDR)
Supported Cable Speed : 0x00000001 (SDR)
Troubleshooting Info
--------------------
Status Opcode : 25
Group Opcode : PHY FW
Recommendation : Cable speed not enabled
Tool Information
----------------
Firmware Version : 16.35.4506
MFT Version : mft 4.30.1-113
To get a full list of current HCA parameters, use:
sudo mlxconfig -d /dev/mst/mt4119_pciconf0 query
Note: you need to start mst before: sudo mst start
Output will be similar to this:
Device #1:
----------
Device type: ConnectX5
Name: MCX555A-ECA_Ax_Bx
Description: ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; single-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device: /dev/mst/mt4119_pciconf0
Configurations: Next Boot
MEMIC_BAR_SIZE 0
MEMIC_SIZE_LIMIT _256KB(1)
HOST_CHAINING_MODE DISABLED(0)
HOST_CHAINING_CACHE_DISABLE False(0)
HOST_CHAINING_DESCRIPTORS Array[0..7]
HOST_CHAINING_TOTAL_BUFFER_SIZE Array[0..7]
FLEX_PARSER_PROFILE_ENABLE 0
FLEX_IPV4_OVER_VXLAN_PORT 0
ROCE_NEXT_PROTOCOL 254
ESWITCH_HAIRPIN_DESCRIPTORS Array[0..7]
ESWITCH_HAIRPIN_TOT_BUFFER_SIZE Array[0..7]
PF_BAR2_SIZE 0
PF_NUM_OF_VF_VALID False(0)
NON_PREFETCHABLE_PF_BAR False(0)
VF_VPD_ENABLE False(0)
PF_NUM_PF_MSIX_VALID False(0)
PER_PF_NUM_SF False(0)
STRICT_VF_MSIX_NUM False(0)
VF_NODNIC_ENABLE False(0)
NUM_PF_MSIX_VALID True(1)
NUM_OF_VFS 0
NUM_OF_PF 1
PF_BAR2_ENABLE False(0)
SRIOV_EN False(0)
PF_LOG_BAR_SIZE 5
VF_LOG_BAR_SIZE 1
NUM_PF_MSIX 63
NUM_VF_MSIX 19
INT_LOG_MAX_PAYLOAD_SIZE AUTOMATIC(0)
PCIE_CREDIT_TOKEN_TIMEOUT 0
ACCURATE_TX_SCHEDULER False(0)
PARTIAL_RESET_EN False(0)
SW_RECOVERY_ON_ERRORS False(0)
RESET_WITH_HOST_ON_ERRORS False(0)
ADVANCED_POWER_SETTINGS False(0)
CQE_COMPRESSION BALANCED(0)
IP_OVER_VXLAN_EN False(0)
MKEY_BY_NAME False(0)
ESWITCH_IPV4_TTL_MODIFY_ENABLE False(0)
PRIO_TAG_REQUIRED_EN False(0)
UCTX_EN True(1)
PCI_ATOMIC_MODE PCI_ATOMIC_DISABLED_EXT_ATOMIC_ENABLED(0)
TUNNEL_ECN_COPY_DISABLE False(0)
LRO_LOG_TIMEOUT0 6
LRO_LOG_TIMEOUT1 7
LRO_LOG_TIMEOUT2 8
LRO_LOG_TIMEOUT3 13
LOG_TX_PSN_WINDOW 7
LOG_MAX_OUTSTANDING_WQE 7
ROCE_ADAPTIVE_ROUTING_EN False(0)
TUNNEL_IP_PROTO_ENTROPY_DISABLE False(0)
ICM_CACHE_MODE DEVICE_DEFAULT(0)
TX_SCHEDULER_FWS_REACTIVITY DIRECT(1)
TX_SCHEDULER_BURST 0
ZERO_TOUCH_TUNING_ENABLE False(0)
LOG_MAX_QUEUE 17
LOG_DCR_HASH_TABLE_SIZE 11
MAX_PACKET_LIFETIME 0
DCR_LIFO_SIZE 16384
LINK_TYPE_P1 IB(1)
NUM_OF_PLANES_P1 0
IB_PROTO_WIDTH_EN_MASK_P1 0
ROCE_CC_PRIO_MASK_P1 255
ROCE_CC_CNP_MODERATION_P1 DEVICE_DEFAULT(0)
CLAMP_TGT_RATE_AFTER_TIME_INC_P1 True(1)
CLAMP_TGT_RATE_P1 False(0)
RPG_TIME_RESET_P1 300
RPG_BYTE_RESET_P1 32767
RPG_THRESHOLD_P1 1
RPG_MAX_RATE_P1 0
RPG_AI_RATE_P1 5
RPG_HAI_RATE_P1 50
RPG_GD_P1 11
RPG_MIN_DEC_FAC_P1 50
RPG_MIN_RATE_P1 1
RATE_TO_SET_ON_FIRST_CNP_P1 0
DCE_TCP_G_P1 1019
DCE_TCP_RTT_P1 1
RATE_REDUCE_MONITOR_PERIOD_P1 4
INITIAL_ALPHA_VALUE_P1 1023
MIN_TIME_BETWEEN_CNPS_P1 4
CNP_802P_PRIO_P1 6
CNP_DSCP_P1 48
LLDP_NB_DCBX_P1 False(0)
LLDP_NB_RX_MODE_P1 OFF(0)
LLDP_NB_TX_MODE_P1 OFF(0)
ROCE_RTT_RESP_DSCP_P1 0
ROCE_RTT_RESP_DSCP_MODE_P1 DEVICE_DEFAULT(0)
DCBX_IEEE_P1 True(1)
DCBX_CEE_P1 True(1)
DCBX_WILLING_P1 True(1)
KEEP_ETH_LINK_UP_P1 True(1)
KEEP_IB_LINK_UP_P1 False(0)
KEEP_LINK_UP_ON_BOOT_P1 False(0)
KEEP_LINK_UP_ON_STANDBY_P1 False(0)
DO_NOT_CLEAR_PORT_STATS_P1 False(0)
AUTO_POWER_SAVE_LINK_DOWN_P1 False(0)
NUM_OF_VL_P1 _4_VLs(3)
NUM_OF_TC_P1 _8_TCs(0)
NUM_OF_PFC_P1 8
VL15_BUFFER_SIZE_P1 0
QOS_TRUST_STATE_P1 TRUST_PCP(1)
DUP_MAC_ACTION_P1 LAST_CFG(0)
MPFS_MC_LOOPBACK_DISABLE_P1 False(0)
MPFS_UC_LOOPBACK_DISABLE_P1 False(0)
UNKNOWN_UPLINK_MAC_FLOOD_P1 False(0)
SRIOV_IB_ROUTING_MODE_P1 LID(1)
IB_ROUTING_MODE_P1 LID(1)
PHY_AUTO_NEG_P1 DEVICE_DEFAULT(0)
PHY_RATE_MASK_OVERRIDE_P1 False(0)
PHY_FEC_OVERRIDE_P1 DEVICE_DEFAULT(0)
PF_TOTAL_SF 0
PF_SD_GROUP 0
PF_SF_BAR_SIZE 0
PF_NUM_PF_MSIX 63
ROCE_CONTROL ROCE_ENABLE(2)
PCI_WR_ORDERING per_mkey(0)
MULTI_PORT_VHCA_EN False(0)
PORT_OWNER True(1)
ALLOW_RD_COUNTERS True(1)
RENEG_ON_CHANGE True(1)
TRACER_ENABLE True(1)
IP_VER IPv4(0)
BOOT_UNDI_NETWORK_WAIT 0
UEFI_HII_EN True(1)
BOOT_DBG_LOG False(0)
UEFI_LOGS DISABLED(0)
BOOT_VLAN 1
LEGACY_BOOT_PROTOCOL PXE(1)
BOOT_INTERRUPT_DIS False(0)
BOOT_LACP_DIS True(1)
BOOT_VLAN_EN False(0)
BOOT_PKEY 0
P2P_ORDERING_MODE DEVICE_DEFAULT(0)
ATS_ENABLED False(0)
DYNAMIC_VF_MSIX_TABLE False(0)
EXP_ROM_UEFI_x86_ENABLE True(1)
EXP_ROM_PXE_ENABLE True(1)
IBM_TUNNELED_ATOMIC_EN False(0)
IBM_AS_NOTIFY_EN False(0)
ADVANCED_PCI_SETTINGS False(0)
SAFE_MODE_THRESHOLD 10
SAFE_MODE_ENABLE True(1)
2.2. Get Cable informations#
To get cables information, start mst, and use cable add:
sudo mst cable add
Then use mlxcables to get cable informations:
sudo mlxcables
Output will be similar to:
Querying Cables ....
Cable #1:
---------
Cable name : mt4119_pciconf0_cable_0
>> No FW data to show
-------- Cable EEPROM --------
Identifier : QSFP28 (11h)
Technology : Copper cable unequalized (a0h)
Compliance : 40GBASE-CR4, 25GBASE-CR CA-25G-N or 50GBASE-CR2 with no FEC
Attenuation: 2.5GHz : 4dB
5.0GHz : 6dB
7.0GHz : 8dB
12.9GHz : 12dB
25.78GHz : 0dB
OUI : 0x0002c9
Vendor : Mellanox
Serial number : XXXXXXXXXXXXX
Part number : XXXXXXXXXXXXX
Revision : A2
Temperature [c] : N/A
Digital Diagnostic Monitoring : NO
Length [m] : 2 m
2.3. Change mode to Ethernet or Infiniband#
Mellanox network cards are able to be in 2 modes: Ethernet or Infiniband. You might need to change it if your card is not configured the way you need.
To do so, check first the current card configuration using:
sudo mlxconfig -d /dev/mst/mt4119_pciconf0 query
Look for line LINK_TYPE_P1. It can be either ETH(0) or IB(1).
Then switch from one mode to the other using this command:
sudo mlxconfig -d /dev/mst/mt4119_pciconf0 set LINK_TYPE_P1=1
LINK_TYPE_P1=1 means Infiniband, while LINK_TYPE_P1=0 means Ethernet. You will need to reboot the system to apply the changes.
2.4. Upgrade firmwares#
Warning
Always do firmware upgrades from inside a Tmux running on the target machine, so that in case of network issue, the process can continue to completion.
2.4.1. Switches#
Switchs upgrades can be made via web interface when manageable. As far as I know, switches firmwares and OS updates are not free access, you need an account to download them. Please contact your vendor to obtain them.
Please consider that you cannot download the latest update and apply it on the switch. You will need to do small jumps via multiple versions to reach the latest supported one.
2.4.2. HCA/NIC#
Warning
NEVER upgrade an HCA based on its name, but use instead the board_id.
To get the board_id, use:
cat /sys/class/infiniband/mlx5_0/board_id
For example:
root@mgmt:~# cat /sys/class/infiniband/mlx5_0/board_id
DEL0000000005
root@mgmt:~# lspci | grep -i mellanox
5e:00.0 Infiniband controller: Mellanox Technologies MT27800 Family [ConnectX-5]
If the card is not an Nvidia card, but an OEM/vendor card, in order to get your card Firmware, select the vendor on this Nvidia website: https://network.nvidia.com/support/oem-firmware-downloads/

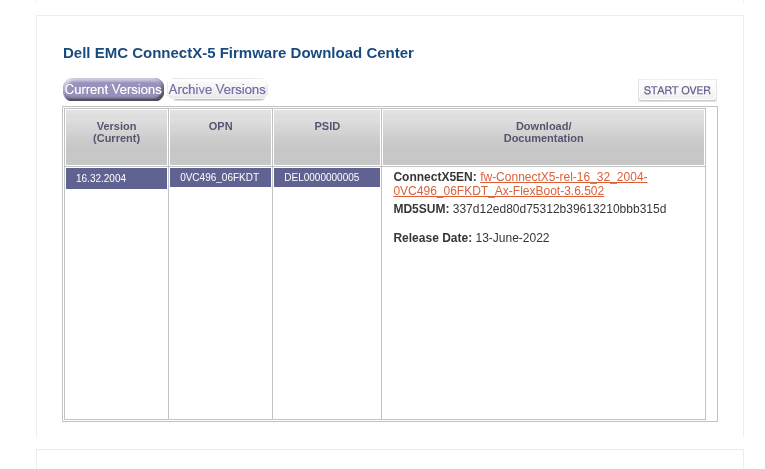

For example, here, it is a ConnectX-5 Dell card, and so in Dell vendor section, find ConnectX-5, and you can check the board_id matches your need:
If the card is an Nvidia/Mellanox card (not OEM), use the page https://network.nvidia.com/support/firmware/firmware-downloads/ to find your firmware.
Never use a firmware that does not match the board id.
Once firmware has been downloaded, flash the HCA using mstflint, and reset it to have the new firmware running:
sudo apt install mstflint -y
sudo mst start
sudo flint -d /dev/mst/mt4119_pciconf0 -i fw-ConnectX5-rel-16_32_2004-0VC496_06FKDT_Ax-FlexBoot-3.6.502.bin burn
sudo mlxfwreset -d /dev/mst/mt4119_pciconf0 reset
